Bow Overview
Please review Warranty prior to making any adjustments
Below is a video rundown of the bow, it’s hardware, and how to fine tune them.
Watch Now!

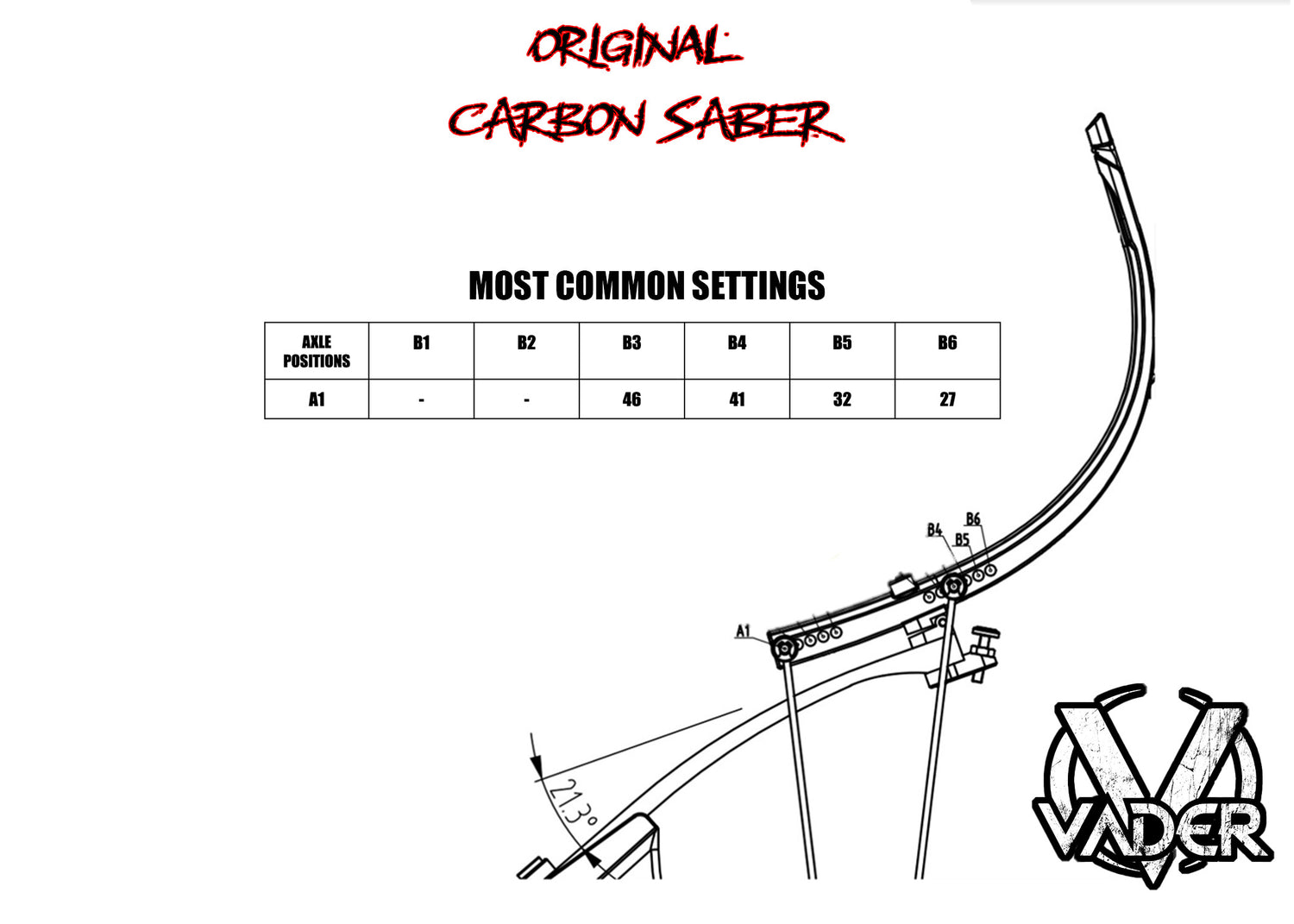

Adjustment Chart and Guide for most common used settings, Please contact customer service with questions and assistance!
NOTE: This is the chart for the Original Carbon Saber and NOT the Shorty.

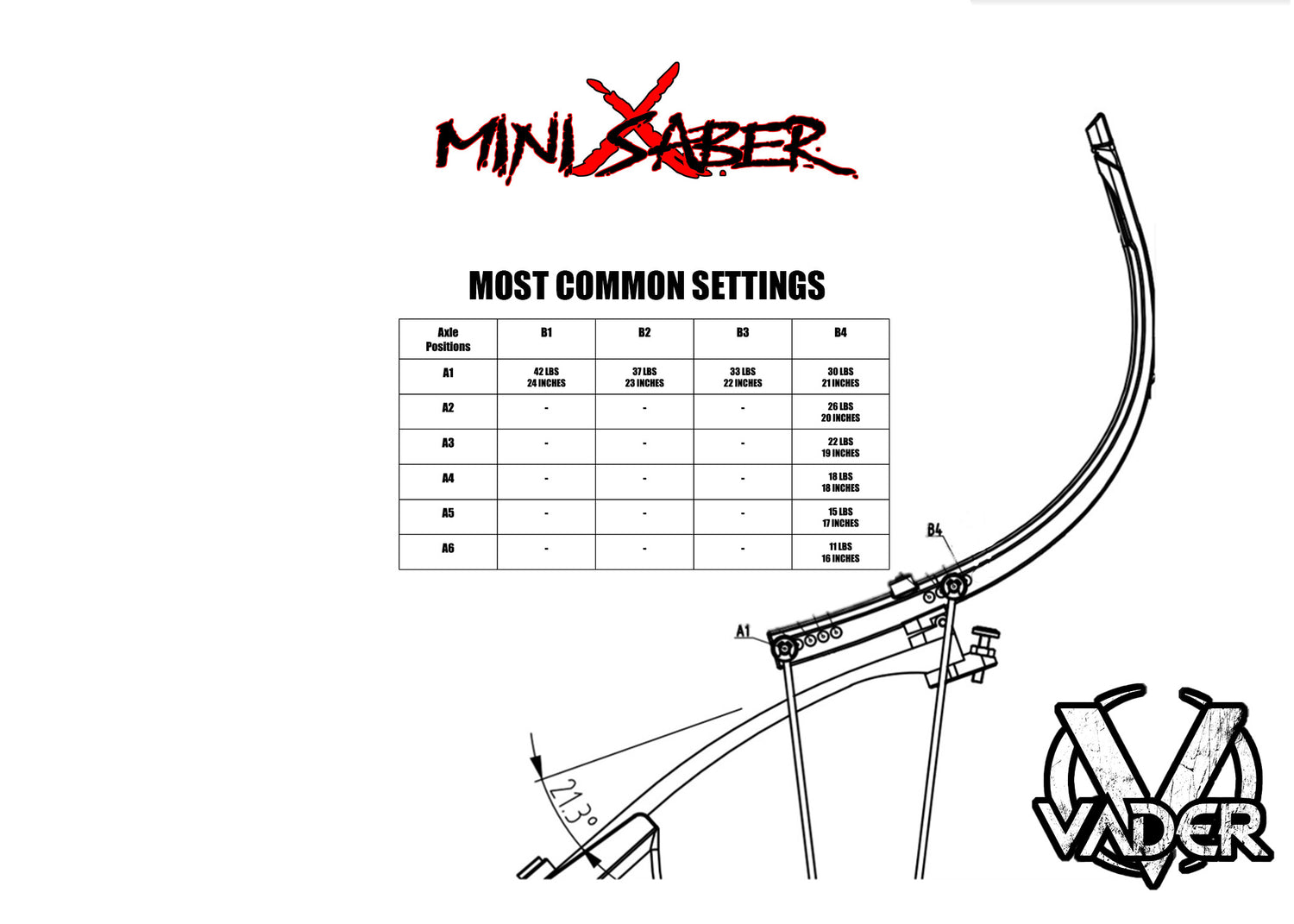

Mini Saber X Youth Bow Most Common Settings.
When changing axle position you must also adjust the limb stop, failure to do so might cause a lock up of the bow.
After axle position is changed always have the draw screw screwed out all the way and then turn it down ( clockwise) in small increments until the desired letoff is attained
Shorty Adjustment Chart
A2,B1 @ 27" with 3 turns out on limb pocket bolt is 42 lbs.
A1,B2 @ 27" with 3 turns out on limb pocket bolt is 41 lbs.
A1,B3 @ 27" with 1 turn out on limb pocket bolt is 40 lbs.
A1,B3 @ 27" with 1 turn out on limb pocket bolt is 36 lbs.
* All Measurements are approx, and were taken on a new bow.
